Product Details:
Payment & Shipping Terms:
|
| Total Weight In Travel: | 42000kg | Engine: | 1HangchaiWD615.334 |
|---|---|---|---|
| Max. Travel Speed: | 80km/h | Approach Angle: | 17° |
| Condition: | New | ||
| Highlight: | hydraulic truck crane,cargo crane truck |
||

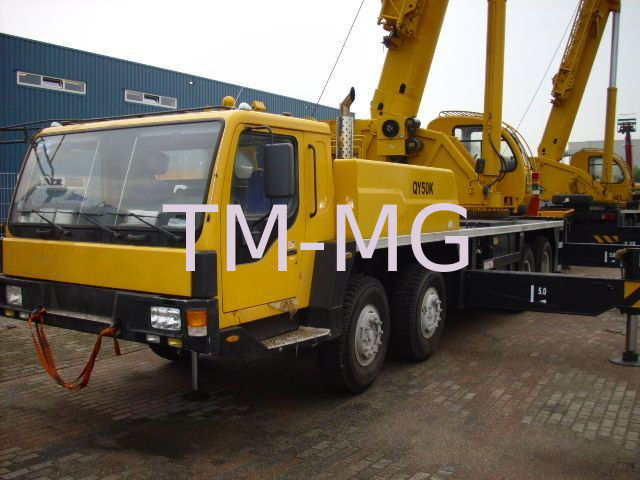

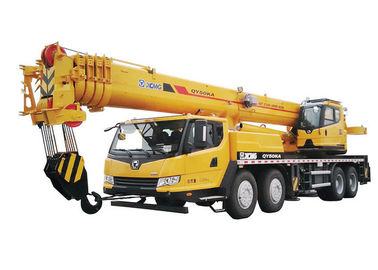

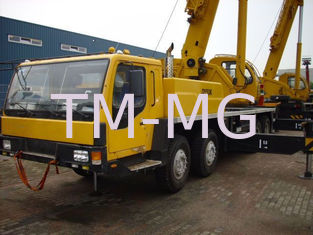

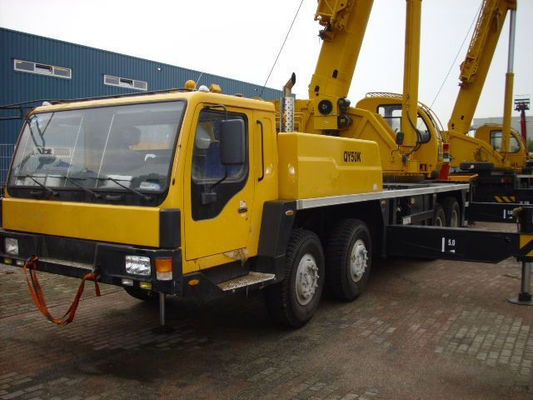

XCMG All Terrain 50 ton boom truck QY50KA 42000kg Total weight in travel
Technical Parameter
|
Dimension |
Unit |
QY50KA |
|
|
Overall length |
mm |
13770 |
|
|
Overall width |
mm |
2800 |
|
|
Overall height |
mm |
3570 |
|
|
Weight |
|
|
|
|
Total weight in travel |
kg |
42000kg |
|
|
Power |
|
|
|
|
Engine model |
|
D10.38A-40/SC10E380.1Q4 |
WP10.375E41 |
|
Engine rated power |
kW/(r/min) |
276/2200 |
279/2200 |
|
Engine rated torque |
N.m/(r/min) |
1500/(1100～1600) |
1500/13001480/(1200～1600) |
|
Travel |
|
|
|
|
Max. travel speed |
km/h |
80 |
|
|
Min. turning diameter |
m |
24 |
|
|
Min. ground clearance |
mm |
327 |
|
|
Approach angle |
° |
17 |
|
|
Departure angle |
° |
11 |
|
|
Max. grade ability |
% |
40 |
|
|
Fuel consumption for 100km |
L |
42 |
|
|
Main performance |
|
|
|
|
Max. rated total lifting capacity |
t |
50 |
|
|
Min. rated working radius |
mm |
3000 |
|
|
Turning radius at turntable tail |
m |
3.482 |
|
|
Max. lifting torque |
kN.m |
1822 |
|
|
Base boom |
m |
11.5 |
|
|
Fully extended boom |
m |
42.7 |
|
|
Fully extended boom+jib |
m |
57.7 |
|
|
Longitudinal outrigger span |
m |
-- |
|
|
Lateral outrigger span |
m |
-- |
|
|
Working speed |
|
|
|
|
Boom luffing time |
s |
-- |
|
|
Boom full extension time |
s |
-- |
|
|
Max. swing speed |
r/min |
1 |
|
|
Max. speed of main winch (single rope) (no load) |
m/min |
-- |
|
|
Max. speed of aux. winch (single rope) (no load) |
m/min |
-- |
|
Spare Parts:
We can supply with all of original spare parts for XCMG truck crane QY16K, QY25K, QY25K5-I, QY70K-I etc., such as diesel pump, oil pump, starting motor, brake valve, steering switch, brake shoe, balance valve, control rod, oil filter, air filter, transmission, pin shaft, pin shaft etc.
F A Q
Q: Are you a trading company?
A: No, we have our own factory, factory+trading company.
Q: How is your warranty?
A: We provide 12 months warranty for our products.
Q:If I don’t know how to install, what should I do?
A: Don’t worry about that, we have professional engineers help you.
Q: How is your after-sale service?
A: 24 hours and 7days service.
