Product Details:
Payment & Shipping Terms:
|
| Total Weight In Travel: | 94400kg | Base Boom: | 19m |
|---|---|---|---|
| Max. Travel Speed: | 75km/h | Approach Angle: | 12° |
| Highlight: | mobile hydraulic crane,hydraulic truck crane |
||

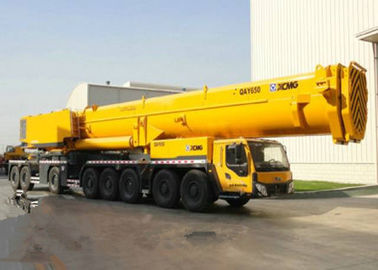

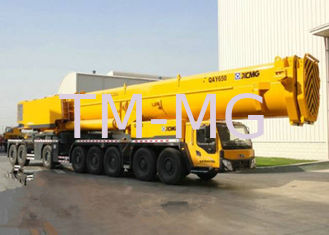

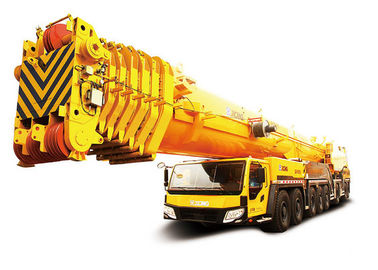

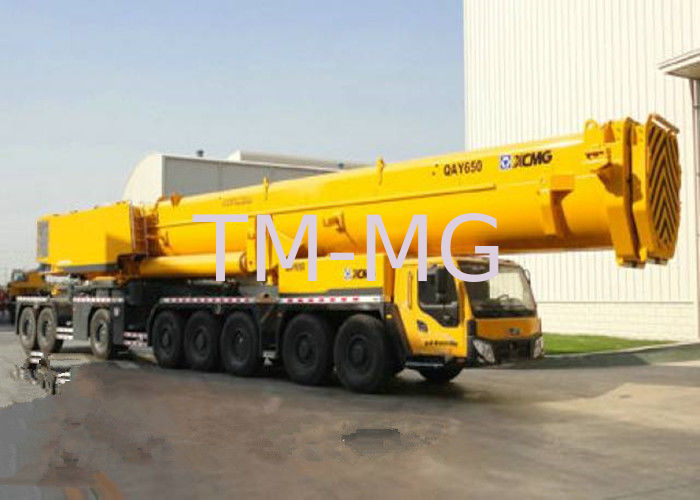

XCMG 650ton All Terrain truck mounted cranes equipment QY650 , low noise
Technical Parameter:
|
Dimension |
Unit |
QY650 |
|
|
Overall length |
mm |
22695 |
|
|
Overall width |
mm |
3000 |
|
|
Overall height |
mm |
4000 |
|
|
Weight |
|
|
|
|
Total weight in travel |
kg |
94400 |
|
|
Power |
|
|
|
|
Engine model |
|
OM906LA |
OM502LA.E3A/1 |
|
Engine rated power |
kW/(r/min) |
205/2100 |
480/1800 |
|
Engine rated torque |
N.m/(r/min) |
1110/1200～1600 |
2800/1300 |
|
Travel |
|
|
|
|
Max. travel speed |
km/h |
75 |
|
|
Min. turning diameter |
m |
29 |
|
|
Min. ground clearance |
mm |
280 |
|
|
Approach angle |
° |
12 |
|
|
Departure angle |
° |
30 |
|
|
Max. grade ability |
% |
40 |
|
|
Fuel consumption for 100km |
L |
110 |
|
|
Main performance |
|
|
|
|
Max. rated total lifting capacity |
t |
650 |
|
|
Min. rated working radius |
mm |
3000 |
|
|
Turning radius at turntable tail |
m |
7.3 |
|
|
Max. lifting torque |
kN.m |
19500 |
|
|
Base boom |
m |
19 |
|
|
Fully extended boom |
m |
91 |
|
|
Fully extended boom+jib |
m |
130 |
|
|
Longitudinal outrigger span |
m |
11.1 |
|
|
Lateral outrigger span |
m |
10 |
|
|
Working speed |
|
|
|
|
Boom luffing time |
s |
-- |
|
|
Boom full extension time |
s |
-- |
|
|
Max. swing speed |
r/min |
1 |
|
|
Max. speed of main winch (single rope) (no load) |
m/min |
-- |
|
|
Max. speed of aux. winch (single rope) (no load) |
m/min |
-- |
|
Spare Parts:
We can supply with all of original spare parts for XCMG truck crane QY16K, QY25K, QY25K5-I, QY70K-I etc., such as diesel pump, oil pump, starting motor, brake valve, steering switch, brake shoe, balance valve, control rod, oil filter, air filter, transmission, pin shaft, pin shaft etc.
