Mining Articulated Dump Truck 45 Ton 6 - 8L Engine Capacity 8450*5100*4100mm

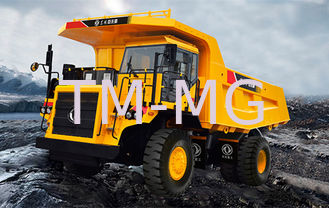

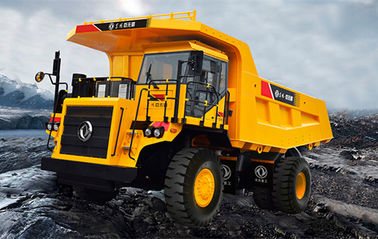

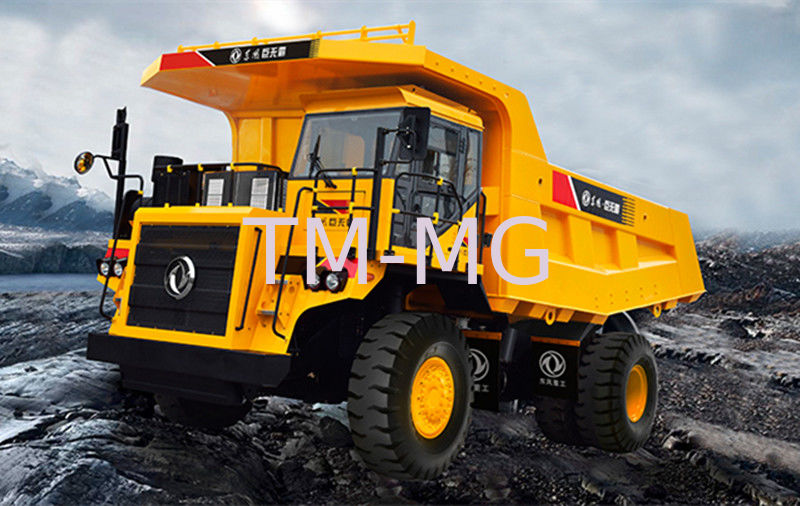

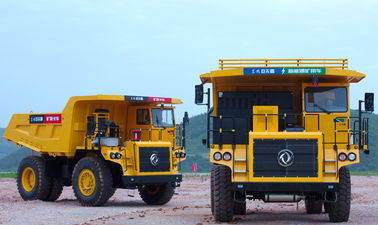

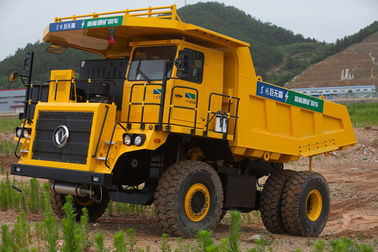

Coal unloading equipment hybrid power DF45E 45 ton electric mining dump truck ​

DF45E Hybrid mining dump truck is the world's largest Hybrid mining truck so far. The Hybrid mining truck can save the fuel 50%-70% than general truck at complex mining area.Using the fuel-efficient mining truck, the original loss of mine transportation projects may become profitable.

Drive Wheel:4x2

Capacity (Load):41 - 50t

Horsepower:251 - 350hp

Engine Capacity:6 - 8L

Gross Vehicle Weight:34000

Dimensions (L x W x H) (mm):8450*5100*4100

Drive style:4 x 2

Max. speed:36 km/h

Displacement:6.7 L

Lifting time:60s

Rated loading capacity:45 ton

Rated power:198kw

Max gross weight:79t

features and advantages

• engine rated power is half of traditional mining truck
• according to our test results,DF45E fuel consumption is about 30% of general truck
• under the same condition of operation, to reduce fuel consumption,increase the tire life
• it can reduce unnecessary maintenance, improve efficiency and increase the service life of filter element
• saving fuel cost
