| Bucket Capacity: | 0.6m3 | Operation Weight: | 14400kg |
|---|---|---|---|
| Max. Digging Height: | 8641mm | Max. Digging Depth: | 5538mm |
| Color: | Yellow | ||
| Highlight: | earth moving equipment,heavy earth moving machinery |
||

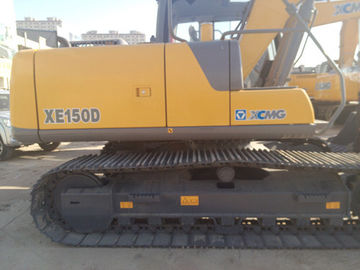

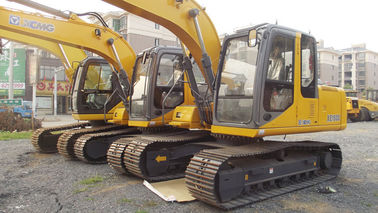

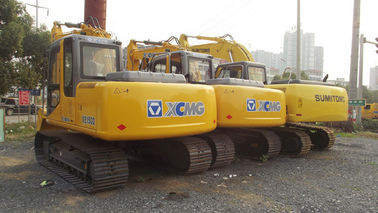

Fuel Saving Earthmoving Machinery XE150D Excavator With CAT Technology
Description:
Specification
1. XCMG, top 5 construction machinery company worldwide.
2. CAT technology, manage and quality.
3. Fuel Saving.
Model
|
XE150D
|
||
Bucket capacity
|
m3
|
0.6
|
|
Standard bucket width
|
mm
|
1,000
|
|
Operation weight
|
kg
|
14,400
|
|
Dimension (in transportation)
|
Overall length
|
mm
|
7,801
|
Overall width
|
mm
|
2,590
|
|
Overall height
|
mm
|
2,850
|
|
Min. clearance
|
mm
|
478
|
|
Engine
|
Model
|
4BTAA3.9
|
|
Total displacement
|
L
|
3.927
|
|
Rated output power
|
KW/rpm
|
85.4/2200
|
|
Digging performance
|
Max. digging height
|
mm
|
8,641
|
Max. dumping height
|
mm
|
6,181
|
|
Max. digging depth
|
mm
|
5,538
|
|
Max. vertical digging depth
|
mm
|
4,727
|
|
Max. digging radius
|
mm
|
8,296
|
|
Boom deflection angle
|
°
|
|
|
Min. slew radius
|
mm
|
2,325
|
|
Min. rear slew radius
|
mm
|
2,325
|
|
Bucket digging force
|
kn
|
85
|
|
Track type
|
Steel
|
||
Track width
|
mm
|
600
|
|
Travel system
|
Track length
|
mm
|
3,660
|
Wheel base
|
mm
|
2,910
|
|
Track gauge
|
mm
|
1,990
|
|
Travel speed (Gear I/II)
|
km/h
|
5.21/3.16
|
|
Gradeability
|
%
|
70
|
|
Slew speed
|
rpm
|
12.3
|
|
Bulldozing plate
|
Bulldozing plate width
|
mm
|
|
Bulldozing plate height
|
mm
|
|
|
Lifting distance
|
mm
|
|
|
Hydraulic pump type
|
Variable pump×2 +gear pump×1
|
||
Slew motor type
|
Piston hydraulic motor
|
||
Travel motor type
|
Piston hydraulic motor
|
||
Fuel tank capacity
|
L
|
250
|
|
Hyraulic oil tank capacity
|
L
|
130
|
|
Advantages
