Product Details:
Payment & Shipping Terms:
|
| Brand: | XCMG | Max. Rated Total Lifting Capacity: | 160t |
|---|---|---|---|
| Base Boom: | 13.6m | Fully Extended Boom: | 60m |
| Lateral: | 8.7(6.5)m | Rated Power: | 380/1800kW/(r/min) |
| Highlight: | mobile hydraulic crane,cargo crane truck |
||

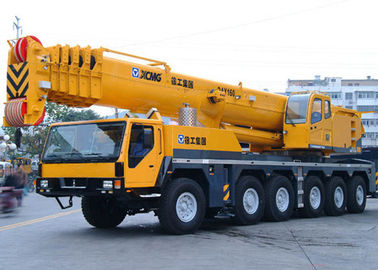

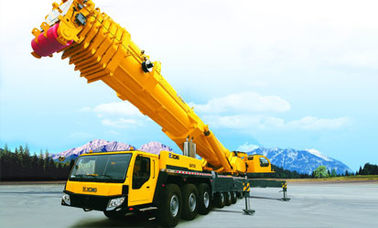

Durable 160Ton Hydraulic Mobile Crane , All Terrian Crane QAY160
Feature
• Adopt new single cylinder retractable technique and high-intensity imported steel, featuring lighter dead-weight and stronger performance.
• The self-combination counterweight technique developed by ourselves can effectively improve the lifting performance by 30%.
• The electrohydraulic proportion control multi-axle steering mode can realize many kinds of steering modes.
• The new brake technique can reduce 2/3 maintenance cost, and improve the travel safety.
• The comfortable cabs and outrigger operation completely show the humanity design concept.
• Equip with the XCMG unique control system, auxiliary retractable boom system, virtual wall system, perfect failure diagnosis, real-time detection, CAN technique, etc.
Technical Parameters
|
Dimension |
Overall length |
mm |
15900 |
|
|
Overall width |
mm |
3000 |
||
|
Overall height |
mm |
4000 |
||
|
Wheel base |
Axle 1, Axle 2 |
mm |
2750 |
|
|
Axle 2,Axle 3,Axle 4,Axle 5, Axle 6 |
mm |
1650 |
||
|
Axle 3, axle 4 |
mm |
2000 |
||
|
Track |
mm |
2590 |
||
|
Mass |
Total mass in travel state |
kg |
70900 |
|
|
Axle load |
Axle 1, Axle 2 |
kg |
11635 |
|
|
Axle 3, Axle 4 |
kg |
11815 |
||
|
Axle 5, Axle 6 |
kg |
12000 |
||
|
Power |
Crane superstructure engine |
Rated power |
kW/(r/min) |
162/2100 |
|
Rated torque |
N.m/(r/min) |
854/1400 |
||
|
Rated speed |
r/min |
2100 |
||
|
Crane carrier engine |
Rated power |
kW/(r/min) |
380/1800 |
|
|
Rated torque |
N.m/(r/min) |
2400/1200 |
||
|
Rated speed |
r/min |
2000 |
||
|
Travel performance |
Travel speed |
Max. travel speed |
km/h |
71 |
|
Min. stable travel speed |
km/h |
2.1 |
||
|
Min. turning diameter |
m |
24 |
||
|
Min. ground clearance |
mm |
278 |
||
|
Approach angle |
° |
25 |
||
|
Departure angle |
° |
20 |
||
|
Braking distance (at 30km/h with full load) |
m |
≤ 10 |
||
|
Max. grade-ability |
% |
48 |
||
|
Fuel consumption for 100km |
l |
80 |
||
Technical Data for Lifting Operation
|
|
||||||
|---|---|---|---|---|---|---|
|
Main performance |
Max. total rated lifting capacity |
t |
160 |
|||
|
Min. rated working radius |
m |
3 |
||||
|
Turning radius at turntable tail |
mm |
4850 |
||||
|
Max. load moment |
Base boom |
kN.m |
5282 |
|||
|
Fully extended boom |
kN.m |
2140 |
||||
|
Outrigger span |
Longitudinal |
m |
9.625 |
|||
|
Lateral |
m |
8.7(6.5) |
||||
|
Lifting height |
Base boom |
m |
14.3 |
|||
|
Fully extended boom |
m |
56.3 |
||||
|
Fully extended boom + Jib |
m |
79 |
||||
|
Boom length |
Base boom |
m |
13.6 |
|||
|
Fully extended boom |
m |
60 |
||||
|
Fully extended boom + Jib |
m |
80 |
||||
|
Jib offset |
° |
0,15,30 |
||||
|
Working speed |
Boom elevating time |
Boom raising |
s |
90 |
||
|
Boom telescoping time |
Boom full extension |
s |
600 |
|||
|
Boom full retraction |
s |
600 |
||||
|
Max. swing speed |
r/min |
2 |
||||
|
Hoist speed (single rope at 4th layer) |
Main winch |
No load |
m/min |
120 |
||
|
Aux. winch |
No load |
m/min |
110 |
|||
|
Crane exterior noise |
db(A) |
≤118 |
||||
|
At seated position |
db(A) |
≤90 |
||||
The specification is subject to change without notice.
